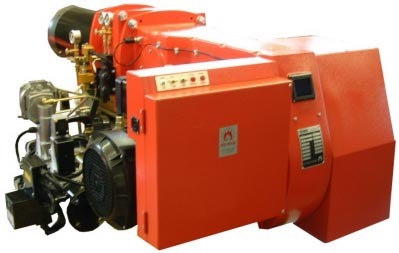

NDF Series Dual Fuel Burner

NDF Series Dual Fuel Burner
NDF Series Dual Fuel Burner
Product Code : NDF100-38
Brand Name : PRATHAM ENGINEERING SYSTEMS
Product Specifications
  • Condition
  • New
  • Usage
  • Industrial
  • Material
  • Steel
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • 10 burners per month.
  • Delivery Time
  • Week
  • Packaging Details
  • Carton boxes, Wooden Boxes & Customized.
  • Main Domestic Market
  • All India
Product Description

We are a highly commended name in the industry, engaged in offering an outstanding range of NDF Series Duel Fuel Burner that is used for generating heat to burn fuel in furnaces. This burner is manufactured under the proper direction of our vendor’s experts by making use of superior grade components and latest manufacturing techniques. Provided burner is also checked on distinct parameters to ensure its hassle-free functionality before delivering to the clients. This NDF Series Duel Fuel Burner is offered in several specifications as per the application needs of our clients.





Features:



  • Sturdy construction

  • High operational fluency

  • Impeccable performance

  • Negligible maintenance

Specifications:

NDF 100-38

Capacity

Fuel

Regulation

766kw to 2706 kw

FO & LPG/ NG

HIGH/LOW and Modulating

NDFR100-38 Dual Fuel Burner features :

  • Burner mounted control panel

  • Simple switch changeover between fuels

  • 2-stage control (high/low) NDF35-100

  • Designed and approved in accordance with the European Standard EN 676 and EN267

  • NDFL - Class 'D' oil 5.5 CSt @ 40'C

  • NDFR - Class 'G' oil 40 CSt @ 100°C

  • Fully closing air damper

  • Oil Heater - Burner mounted pumping & heating unit included with burner to heat oil for atomization
    for NDFR
    (Intermittent operation during standby to maintain oil temperature for immediate restart)

  • NDFR burners require a pre-heated ring main oil supply, minimum temperature @ 83°C for
    Class 'G' oil

  • All kW ratings are nett CV

  • Suitable for high resistance boilers

  • Industry standard components easily available

  • Options Extras: Modulating control (Std on NDF100-41 and above)
    Air inlet silencer (Std on NDF100-41 and above)
    Acoustic cover (wheel-over)
    Water level control panel (AOTC)
    Free-standing pumping & heating unit.


NDFL DISTILLATE FUEL HIGH/LOW



Panel and Pump Unit mounted on Burner

   Burner Type



NDFL100-38

Capacity

kW

766-2706





100-38

Fan Motor

V/ph/Hz

380/420 / 3 / 50



kW

7.5

Run Current

A/each phase

14.4

Cable size

mm2

4.0

Fuse

A (HRC)

25

Pump Motor (separate on Modulation version only)

kW

1.5*

Control unit



LFL

Flame monitoring



UV Cell

Control Options



2 Stage / Modulating

Air damper motor




Pressure gauge




Noise

@1m DBA

92

Gross weight

kg

300

Packing dimensions

l x w x h (cm)
